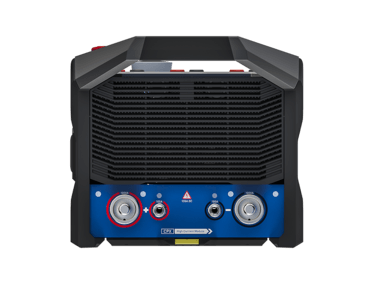

CPX 200
A compact multifunctional testing device for commissioning, maintenance and condition assessments of medium and high voltage assets.
CONTACT US NOWCPX 200 – Revolutionary Excellence

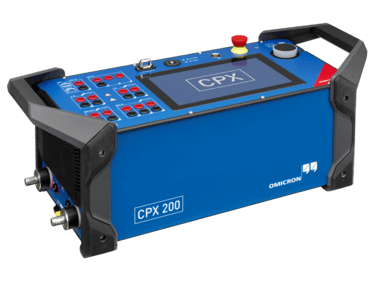

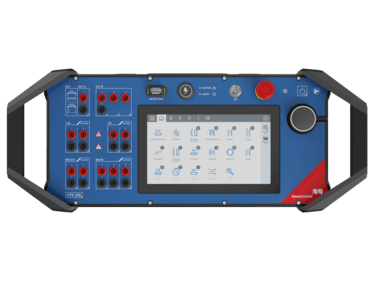

The CPX 200 is designed to meet the demands of today and the challenges of tomorrow’s energy systems. Compact, powerful, and exceptionally safe, it sets a new benchmark for next-generation multifunctional testing. Developed in accordance with internationally recognized standards, the CPX 200 meets all current safety and cybersecurity requirements. It’s ideal for substation commissioning and diagnostic testing of medium- and high-voltage assets. It delivers an outstanding performance that covers hardware, software, and accessories, ensuring long-term reliability and maximum value.
CPX 200 – Unleash the Expert
Get the best out of the primary injection box:
- 1000 A AC/DC with High Current Module
- 10 kV AC/DC with HVX10
- Testing frequency range: 1 – 600 Hz and DC
- High measurement accuracy
Powerful
Get the best out of the primary injection box:
- 1000 A AC/DC with High Current Module
- 10 kV AC/DC with HVX10
- Testing frequency range: 1 – 600 Hz and DC
- High measurement accuracy
Reduced risk of electrical hazards thanks to our safety features:
- Red/Green signal lights
- Emergency switching off button
- INTERLOCK key
- Workflow according to EN 50191
- Wiring guidance with indicator lights

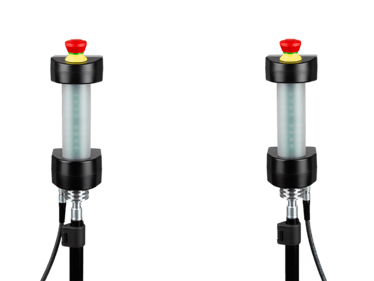

- Optional accessory: external warning lamp* coming soon
Developed with Safety in Mind
Reduced risk of electrical hazards thanks to our safety features:
- Red/Green signal lights
- Emergency switching off button
- INTERLOCK key
- Workflow according to EN 50191
- Wiring guidance with indicator lights
- Optional accessory: external warning lamp* coming soon
All tests can be performed with a total system weight under 30 kg (66 lb)
- CPX 200: 10.6 kg (23.3 lb)
- High-Current Module: 3.3 kg (7.4 lb)
- HVX10 14.8 kg (32.7 lb)
- Avoid heavy lifting and cargo limitations via a lightweight system solution
Maximum Power per Space
All tests can be performed with a total system weight under 30 kg (66 lb)
- CPX 200: 10.6 kg (23.3 lb)
- High-Current Module: 3.3 kg (7.4 lb)
- HVX10 14.8 kg (32.7 lb)
- Avoid heavy lifting and cargo limitations via a lightweight system solution
- Tests power transformers, instrument transformers, and switchgears
- Extended application range with integrated high current module and compact high voltage source HVX10
- Adjustable accessories with "Click&Play" system
- Versatile transport options with backpack or transport case
- Guided test procedures with customized PC software CPXpert
- Quick operation via CPX TouchControl
- Efficient analyses with our future-oriented cloud system CORTEX Grid
Modular
- Tests power transformers, instrument transformers, and switchgears
- Extended application range with integrated high current module and compact high voltage source HVX10
- Adjustable accessories with "Click&Play" system
- Versatile transport options with backpack or transport case
- Guided test procedures with customized PC software CPXpert
- Quick operation via CPX TouchControl
- Efficient analyses with our future-oriented cloud system CORTEX Grid
- Combined measurement channels minimize wiring efforts
- True three-phase voltage source
- Colored multi-touchscreen with automatic brightness adjustment
- Guided test execution with detailed nameplate support
- Multi-asset testing in a single user interface
- Complete and automatic test result documentation
- Streamlined test plans and reporting from start to finish
Easy to Operate
- Combined measurement channels minimize wiring efforts
- True three-phase voltage source
- Colored multi-touchscreen with automatic brightness adjustment
- Guided test execution with detailed nameplate support
- Multi-asset testing in a single user interface
- Complete and automatic test result documentation
- Streamlined test plans and reporting from start to finish
One Device, Infinite Possibilities
With the CPX 200, you always have a reliable and safe expert for commissioning, maintenance, or regular condition assessments of medium and high voltage equipment with you.
Universal
- Quick Test
- Insulation Resistance
- Power/Dissipation Factor
Instrument Transformer

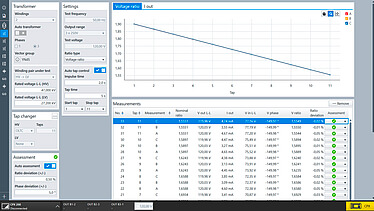

- Ratio
- Ratio V
- Low Power Instrument Transformer Ratio
- Knee Point

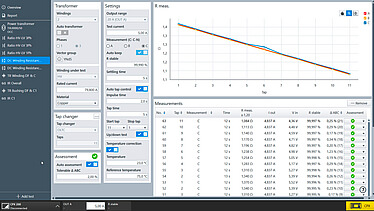

- Winding Resistance
- Burden
- Polarity
- Insulation Resistance
- Power/Dissipation Factor
Power Transformer
- Transformer Turns Ratio
- Winding Resistance
- Demagnetization
- Short-circuit Impedance / Leakage Reactance
- Insulation Resistance
- Power/Dissipation Factor
- Exciting Current (available soon)

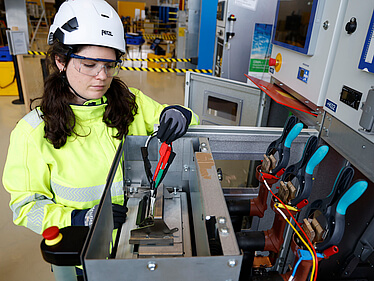

Switchgear
- Timing
- Coil and Motor Current
- Static Contact Resistance
- Insulation Resistance
- Power/Dissipation Factor
“We are excited to introduce a groundbreaking innovation – an ecosystem which redefines multifunctional testing. This seamless interaction elements enables test engineers to unleash their full potential by focusing their undivided attention and expertise on core tasks. We are proud to introduce the CPX 200 and its unique ecosystem.”
Your OMICRON development team

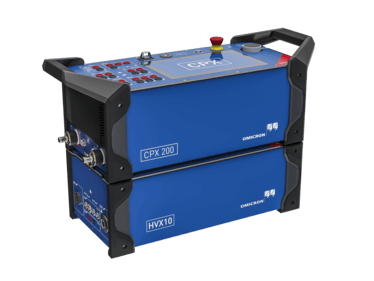

HVX10 – the high voltage system component

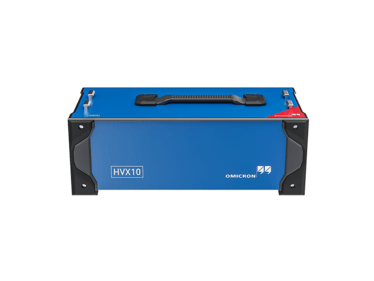

The HVX10 is a versatile system component combining testing for capacitance and power/dissipation factor, and insulation resistance in a compact, lightweight device. Thanks to the integrated generic high-voltage source, you can diagnose the quality of the insulation with minimal wiring effort in the shortest possible time. HVX10 uses an optimized testing procedure that combines voltage and frequency sweeps. An extremely wide frequency range from 1 to 600 Hz allows you to easily assess the insulation beyond main frequency. The testing procedure also helps detect specific problems such as moisture ingress, premature aging, or voltage-dependent behavior in the insulation. The one click-snap-lock system allows you to effortlessly mount and dismount the HVX10 to the CPX 200.

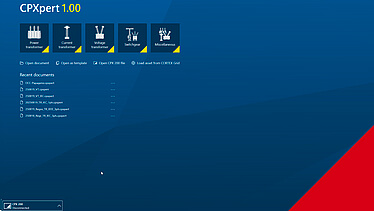

CPXpert – Guided, Flexible Testing

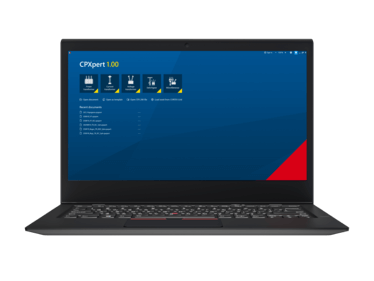

With CPXpert, you can conduct measurements with efficiency and precision. It provides test engineers with the tools needed to quickly and easily perform measurements with CPX 200. Flexible testing procedures enable you to save time while ensuring high-quality and reliable test results. Features include: detailed tooltips, wiring diagrams, integrated wiring checks and automatic assessments, ensuring testing is simple and safe. Additionally, CPXpert offers detailed application-specific and test-specific workflows to support various testing needs.
Your benefits
- Asset specific test plan generation including wiring diagrams
- Automatic assessment according to industry standards
- Access to your CORTEX Grid database via OMICRON Continuity (incl. your PTM database)
- Multi window-support for multi-asset and feeder testing
- Designed with accessibility in mind by providing easy and comprehensive testing workflows
- Generate high quality data sets powered by in-depth asset nameplate coverage
Unified Test Data, Centralized Access and full Control

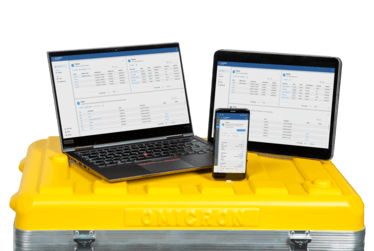

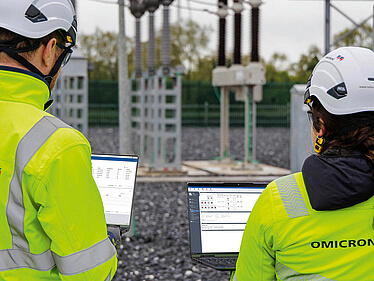

CORTEX Grid - our new cloud system - is the key for streamlining your testing process. It equips electrical grid testing professionals with a seamless way to integrate, prepare and analyze test data. This streamlined approach maximizes efficiency, reduces workload and enables a future proof data management strategy.
Your benefits
- Seamlessly uploading test data to CORTEX Grid with the OMICRON Cloud Link eliminates manual data entry, ensuring a smooth, automated workflow.
- By simply using test files generated from OMICRON software and devices, you can efficiently transfer asset data with minimal effort.
- Designed for scalability, OMICRON Cloud Link grows alongside your organization, supporting everything from single uploads to bulk data migration from existing databases.
- Even when internet access is unavailable, test files remain accessible for local use, ensuring continuous workflow and later synchronization with CORTEX Grid.
Solutions for:
Documents
Videos
Introducing the CPX 200
CPX 200 Keynote: Our Experts Present
Join us on our CPX 200 journey around the globe
Don’t miss your chance to see the CPX 200 and its ecosystem live and in-depth at one of our events near you.

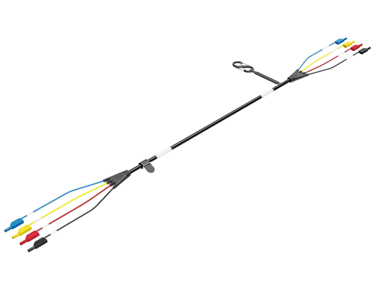

Accessories

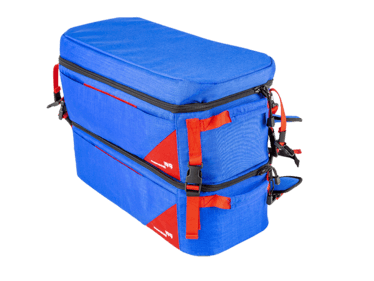

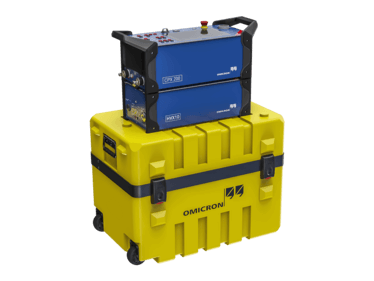

Backpack
The new, lightweight carry cases can be used independently or combined to form a convenient backpack.
HVX10
10 kV AC/DC with the HVX10 system component
