Power Transformer Bundle

One solution for comprehensive condition diagnosis of your power transformer.
It comprises the Primary Test ManagerTM software and various OMICRON test systems.

Build your own bundle depending on your testing needs

Use ...

... one software for all tests and test systems – thus, one database for all your testing and asset data

Primary Test ManagerTM software

Choose ...

... your powerful main unit for all common diagnostic tests on power transformers

TESTRANO 600
CPC 100

Get ...

....smart solutions for advanced diagnostic testing of your power transformer

DIRANA
FRANEO 800

Extend ...

... your bundle for optional testing of power/dissipation factor and capacitance

CP TD12
×

One solution for multiple tests

Using the PTM software and four OMICRON test systems, you can perform all diagnostic tests on power transformers.
Transformer turns ratio
Excitation current
DC winding resistance
Dynamic resistance
Short-circuit impedance / leakage reactance
Frequency response of stray losses
Demagnetization
Power / dissipation factor (with CP TD12)
Dielectric (frequency) response analysis
Sweep frequency response analysis

Build your own bundle

Depending on your testing needs – the type of asset and the kind of diagnostic tests – you have the choice between several possible combinations.

Step 1: Choose your test object

Step 2: Extend your bundle

Step 3: Get your bundle

I want to test power transformers and bushings as fast as possible

Select and move on

I want to test power transformers but also other high-voltage assets

Select and move on

I need a device to measure power/dissipation factor and capacitance at high voltage

Select and move on

I already have a corresponding test device

Select and move on

Your ideal bundle

Your ideal bundle

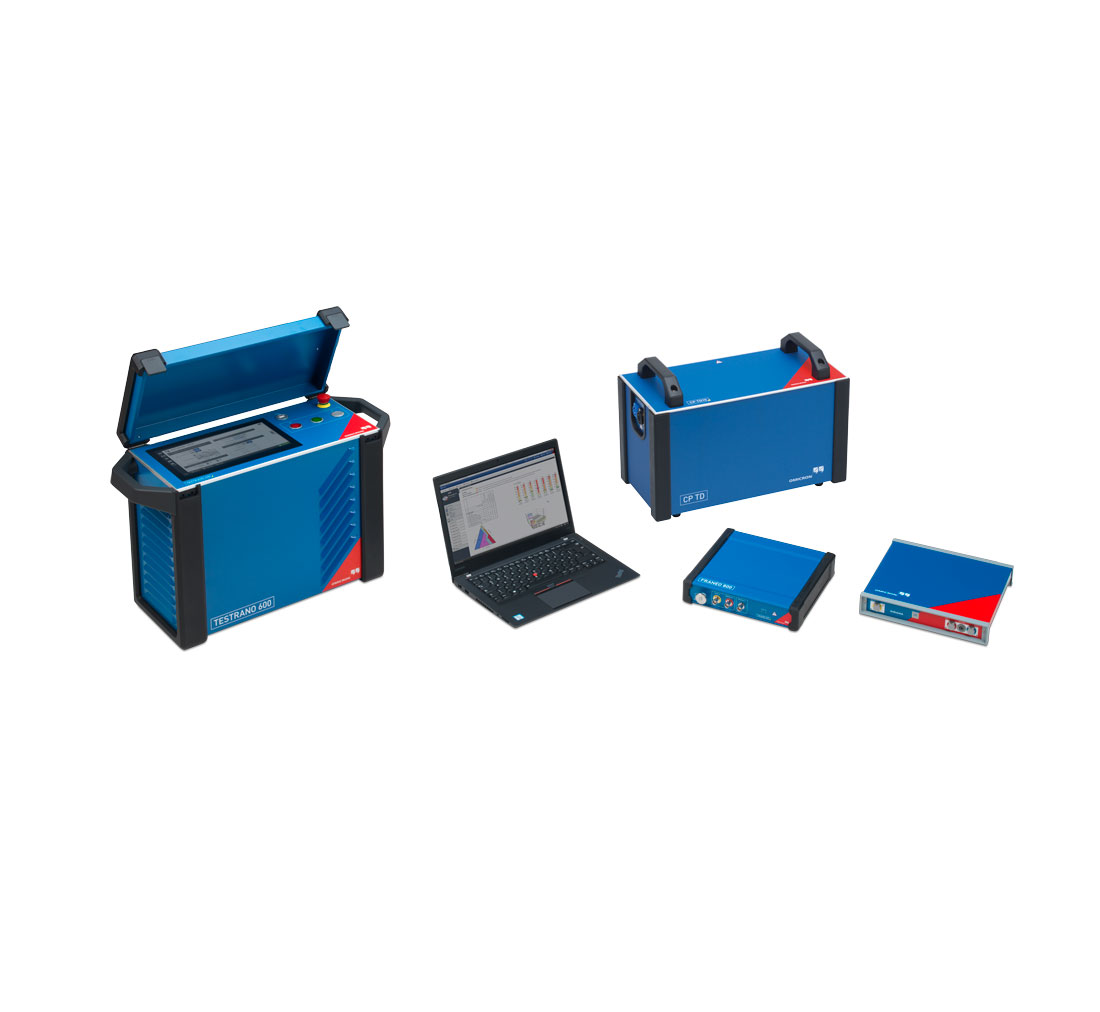

  • TESTRANO 600 for overall common diagnostic tests

  • CP TD12 for power/dissipation factor and capacitance testing

  • DIRANA and FRANEO 800 for advanced testing of bushings, insulation, core and windings

  • PTM software for easy operation and data management

Your ideal bundle

Your ideal bundle

  • TESTRANO 600 for overall common diagnostic tests

  • DIRANA and FRANEO 800 for advanced testing of bushings, insulation, core and windings

  • PTM software for easy operation and data management

Your ideal bundle

Your ideal bundle

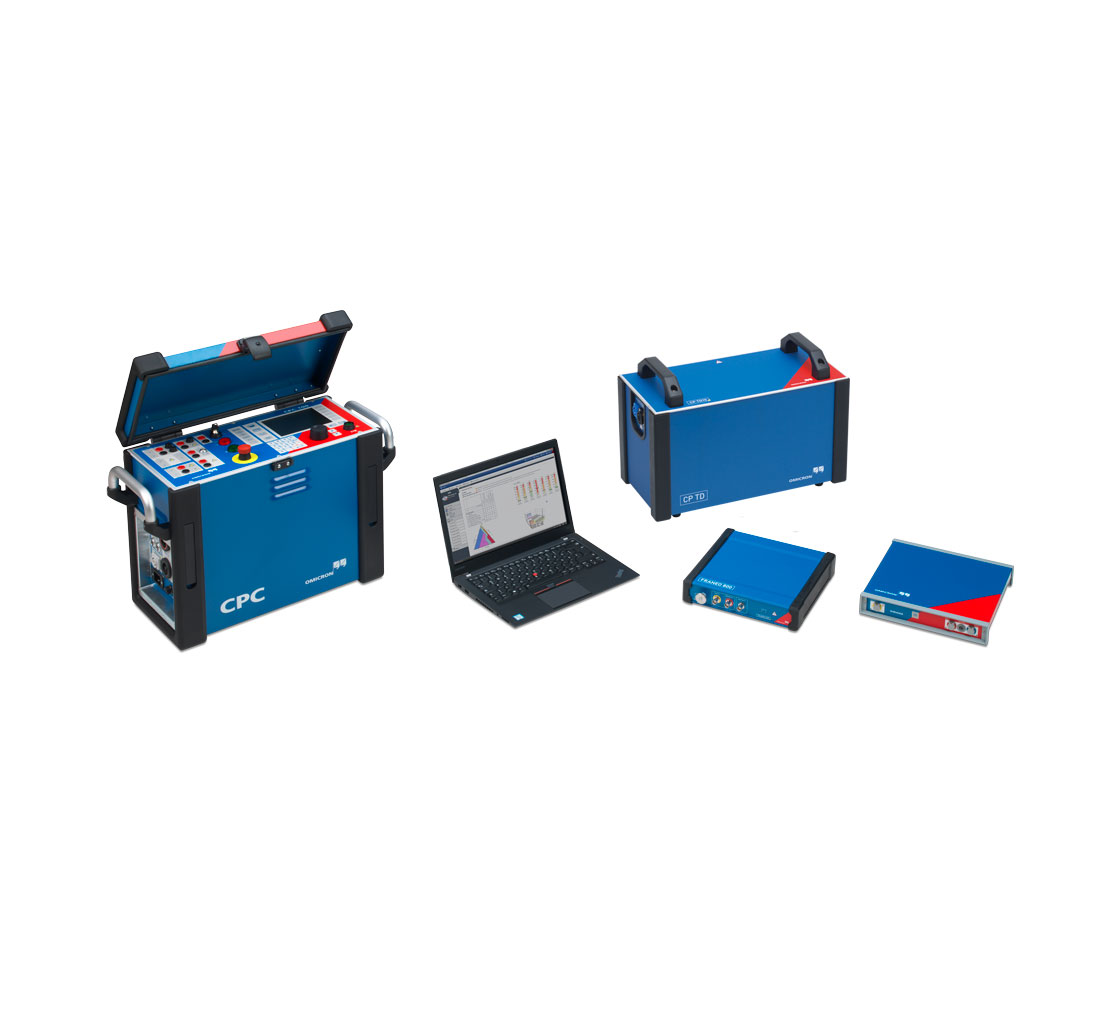

  • CPC 100 for overall common diagnostic tests

  • CP TD12 for power/dissipation factor and capacitance testing

  • DIRANA and FRANEO 800 for advanced testing of bushings, insulation, core and windings

  • PTM software for easy operation and data management

Your ideal bundle

Your ideal bundle

  • CPC 100 for overall common diagnostic tests

  • DIRANA and FRANEO 800 for advanced testing of bushings, insulation, core and windings

  • PTM software for easy operation and data management
