CMC CT-Check
Functional CT Checks with the CMC 500
Functional CT Checks with the CMC 500

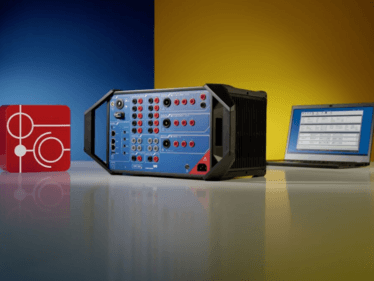

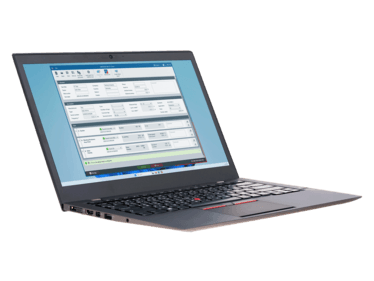

CMC CT-Check extends the versatile CMC 500 with automated basic checks of current transformers (CTs). It supports commissioning and maintenance tasks.
You perform the following commissioning-relevant checks:
- Voltage-based ratio
- Polarity check
- Winding resistance (temperature corrected)
- Knee-point voltage (Up to 2.5kV and according to IEC 61869-2)
- Operating burden
After testing, the CT is automatically demagnetized. This helps you quickly detect polarity, ratio, core connection, burden, or remanence issues.
Reduce CT-Related Commissioning Risks
Detect CT, burden and wiring related issues during commissioning that frequently arise from:
- Incorrect core connection
- Polarity inversion
- Undocumented burden changes
- Residual magnetization
Integrated within CMC 500, it helps increase reliability of the protection system.
- One test set for comprehensive relay and functional CT tests
- Minimal rewiring with guided steps
- Generate a one-page report
Not every CT problem is the same
| CT-Check with CMC 500 | CT Analyzer | |
|---|---|---|
| Typical Users (e.g.) | Protection test engineers with occasional CT testing needs | CT testing specialists and experts |
| Scope of measurement | Burden, winding resistance, knee-point, demagnetization, ratio, phase, polarity | Complete measurement of all class-relevant parameters |
| Accuracy measurement | Turns ratio error and phase at a specific operating point | Precise accuracy measurement across all defined operating points and burdens according to standard |
| Class evaluation | Basic functional assessment | Full class evaluation according to the standard Custom assessment possible |
| Supported standards | IEC 61869-2 | IEC 60044-1 IEC 60044-6 IEC 61869-2 IEEE C57.13 Custom standards |
| Workflow | Simple, fast, integrated into protection testing | Fast, detailed, specialized |
| Hardware | Integrated into the CMC test set | Stand-alone measuring device |
| Recommended use | Basic CT testing in protection applications | Comprehensive CT analysis and acceptance testing |
Experience Fast CT-Check Tests
Request a demo to see how to perform functional CT checks with the CMC 500 using CMC CT-Check software. You verify polarity, ratio, core connection, and burden to detect issues early during commissioning and maintenance.
