TANDO 700

High-precision capacitance and dissipation/power factor measurements

Precise testing on various electrical assets

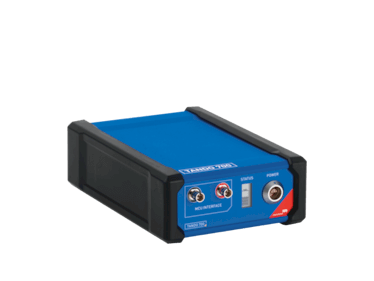

The portable TANDO 700 system offers high-precision measurement of dissipation/power factor (Tan Delta) and capacitance for high-voltage laboratory tests, such as routine and type tests, on various electrical assets. TANDO 700 also measures additional parameters such as power, current, voltage, impedance and frequency. TANDO 700 software shows you all measurement data in real-time, displays related trends and enables you to create customized reports.

TANDO 700 at a glance

TANDO 700 measures both ungrounded and grounded test objects, since it can be operated on high voltage potential. The system is compatible with any type of reference capacitor.

High voltage potential

TANDO 700 measures both ungrounded and grounded test objects, since it can be operated on high voltage potential. The system is compatible with any type of reference capacitor.

The typical high measurement accuracy of <5E-6 allows you to achieve reliable measurements of capacitance and dissipation/power factor in both testing labs and in the field.

High precision

The typical high measurement accuracy of <5E-6 allows you to achieve reliable measurements of capacitance and dissipation/power factor in both testing labs and in the field.

TANDO 700 can directly measure currents in a dynamic range from 5 μA to 1 A. The input range can be extended up to 28 A by adding the optional external shunts.

Extendable range

TANDO 700 can directly measure currents in a dynamic range from 5 μA to 1 A. The input range can be extended up to 28 A by adding the optional external shunts.

TANDO 700 software automatically recognizes connected hardware for easy plug-and-play operation. Fiber optic connections ensure superior safety in high-voltage areas.

Safe, plug-and-play operation

TANDO 700 software automatically recognizes connected hardware for easy plug-and-play operation. Fiber optic connections ensure superior safety in high-voltage areas.

Flexible use in test labs and in the field

TANDO 700 requires a separate voltage source for performing measurements. It is compatible with any type of reference capacitor for testing insulation material in a variety of high-voltage equipment. The system measures both ungrounded and grounded test objects, since it can be operated on high-voltage potential. Powerful internal batteries enable long, uninterrupted measurement sessions.

“TANDO 700 provides you with high-precision capacitance and dissipation/power factor measurements on various electrical assets. It can be used with external high-voltage sources in both the testing lab and in the field.”

Key features

Reliable measurement accuracy in heavy interference environments
Galvanic isolation for optimum safety during setup and operation
Large input measurement range for a wide variety of test objects
Compact design for easy transport to various testing areas
Plug-and-play operation for quick system setup
Simultaneous partial discharge measurement and analysis with our MPD 600
Customizable data display and reporting

Applications

Rotating machines (motors and generators)
Bushings
Capacitors
Distribution, instrument and power transformers
Power cables and cable accessories
Research and development
Metrology institutes

Download the latest software version for TANDO 700 in our Customer Portal.

Accessories extend performance

TANDO 700 can directly measure currents in a dynamic range from 5 μA to 1 A. This input range can be extended up to 28 A by means of optional external shunts.
