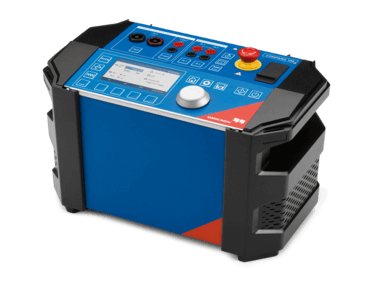

COMPANO 100

Primary injection, secondary injection and basic protection test set

COMPANO 100 is the universal and easy-to-use solution for all types of basic testing duties in electrical energy systems. Controlled electronic sources allow the user to obtain exactly the desired value and to output signals with variable frequencies and other signal forms, automated ramps, and pure DC. The highly flexible inputs are configurable, for example, as binary inputs for relay testing, AC or DC voltage inputs or current inputs.

Read the Manual

Key features

Accurate output of desired value
Run complex predefined sequences and ramps
Polarity check signal generation for quick setup of wiring tests
Runs without main power supply for several hours
High versatility
Portable due to light weight

Applications

Wiring and polarity checks
Burden measurements
Single-phase protection relay testing
CT / VT ratio checks
Micro-ohm resistance testing

Download the latest software version for COMPANO 100 in our Customer Portal.

Solutions for:

Protection Relay Testing

Substation Panel Wiring and Wiring Checks

Instrument Transformer Testing

Static Contact Resistance of Disconnectors and Joints

Grounding Systems

Documents

Literature

COMPANO 100 Brochure (2 MB)

Diagnostic Testing for grounding systems - Brochure (2 MB)

Videos

View all videos

Accessories

Binary output relay

C-Shunt precision shunts

Precision shunts for current measurements

CBF1 Accessory for self-powered relays

COMPANO 100 6 m / 20 ft cable set

Cable set for COMPANO 100 for larger test objects

COMPANO 100 Grounding System Accessories

Accessory package to measure soil resistivity, ground impedance and continuity of a grounding system.

COMPANO 100 transport options

Multifunctional transport options for COMPANO 100

Handheld polarity checker

Clamp-on ammeter

Check current flows when performing wiring checks

Current clamp C-Probe 1

Active AC and DC current probe with voltage output

Foot electrode 20 x 20 cm / 7.9 x 7.9 in

A foot electrode with an area of 20 cm x 20 cm.

Set of 2 Kelvin clamps with 2 x 4 mm connector

Kelvin screw M12, M14 and M16

Measurement cable set

Measurement cable set 6 x 6 m / 19.5 ft & Measurement cable set 6 x 10 m / 32 ft

For measuring the current reduction factor during grounding system tests.

SAA2 Warning Lamp

Scalable safety accessory to mark testing area

Step and touch voltage accessories

An accessory package for measuring step and touch voltages in electrical power stations and the surrounding areas.

Terminal adapter box

For connecting test leads to cabinet terminals

VBO4 Voltage booster for 300 V and 750 V
