StationScout
The innovative testing solution for Substation Automation Systems (SAS)
Simple yet Powerful
StationScout simplifies testing for Substation Automation Systems (SAS) and significantly reduces the required testing effort. It comes with a robust and powerful hardware that allows users to simulate multiple IEDs with secure isolation to the SAS networks. This user-friendly software helps you to visualize SCL files, trace signals, and test RTU/Gateway mappings within your substation without any configuration effort.
Designed for the entire lifecycle
Testing & Commissioning
Thanks to its powerful hardware you can simulate several IEDs and test your GOOSE communication or your HMI (SCADA) when the IED is not physically available.
Specification & Engineering
The StationScout UI shows IED configurations, mappings, or GOOSE configurations. Verify your substation specifications and SCD engineering before you even start testing.
Operation & Maintenance
StationScout has a “Live View” which allows you to trace signals and see differences between the configuration (SCL file) and the substation. Test cases can be defined and repeated.
RTU/Gateway Testing
StationScout supports the IEC 60870-5-104 communication protocol for the SCADA/control center communication and allows you to easily observe and test the IEC 61850 mappings.

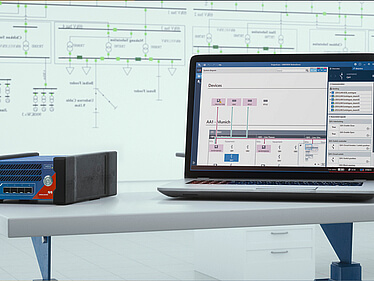

Powerful hardware
Afraid to connect a PC to your substation system? Do you need to simulate several IEDs? Is it important to share your license?
This is why we developed the MBX:
- No administrator rights are needed on your enterprise PCs to set up IP addresses for IED simulation.
- Enough network ports to connect to different substation networks.
- Very powerful HW for simulating many IEDs.
- The license is in the box and can be shared easily with your team.
Is the MBX just a regular PC?
No, it has special network interfaces, a secure crypto-processor (TPM) and its rugged design makes it ideal for substation use.
Over the past few weeks, I’ve been testing our substation with a new RTU and existing IEDs. StationScout has been a pleasure to use—it's both intuitive and highly effective, making the testing process much smoother and almost effortless.
Dan Smidsrød
Systemengineer Process Control
Glitre Nett
"For the testing and commissioning of our new 10 kV substation we use the test solution StationScout. The factory acceptance tests were successfully carried out jointly with the supplier under OMICRON's leadership and the entire system was tested with StationScout for the first time. StationScout was able to quickly identify where there was still a need for action on the part of the IEC 61850 parameterization."
Reinhard Bretzke
Head of Electricity Department
Stadtwerke Kempen
"StationScout is a great tool to visualize the configuration and to see, that manufacturers are fulfilling our 61850 requirements. This gives us new opportunities for the future to “virtualize” our protection and control specifications into SSD files and create and visualize all needed functionalities which can be used as a handover packing in a digital substation concept."
Sebastian Sjögren
Head of Substation Automation Systems
Specialist - Secondary Systems at Fingrid Oyj
"Within the Qirion OT company, we are very pleased with StationScout. It simplifies our way of testing complete automation systems without using physical IEDs. Furthermore, StationScout is a useful device for testing interlockings between IEDs, because the state of the interlocking is graphically displayed on the screen. So, no switching is necessary. This gives us a great benefit for testing interlockings in a live automation system as well as in an in-house test environment."
Robbert Koenderman
Product Manager
Senior Engineer at Qirion, part of Alliander
Key benefits
Status overview
StationScout provides a clear overview of the substation, visualizing the communication according to IEC 61850 in SCL files, values and states in the substation.
RTU/Gateway testing
StationScout supports IEC 60870-5-104 communication protocols, allowing users to easily observe, track and test the communications from binary I/Os to IEC 61850 to IEC 60870-5-104 mappings for the SCADA/control center, enabling automated end-to-end testing.
Signal tracing and signal testing
The communication diagram of StationScout allows you to use signal tracing from the overview to the detailed communication message attributes. StationScout also accelerates the efficient testing of SCADA/HMI signals.
Signal filtering
StationScout can visualize the 'state' of the signals in the Overview section for a quick check of the mapping from binary I/Os to IEC 61850 to IEC 60870-5-104, reducing the time needed for on-demand troubleshooting.
Automated testing
StationScout is able to re-use predefined test cases for testing procedure. Interlocking conditions can be tested automatically.
Cybersecurity
The dedicated hardware for StationScout ensures cybersecure operation within the substation communication network.
Simulation
StationScout’s powerful simulation features simplify testing and commissioning. Missing IEDs and IOs can also be simulated.
Try out StationScout Online Demo
Explore the power of StationScout and try the innovative IEC 61850 testing solution in the browser.
Book your 1-hour demo slot now here:
